An attempt at applying 123D Catch to survey selected elements of architecture of the Cistercian Abbey in Rudy

Lubow Smirnowa

doi:10.5277/arc160208

Abstract

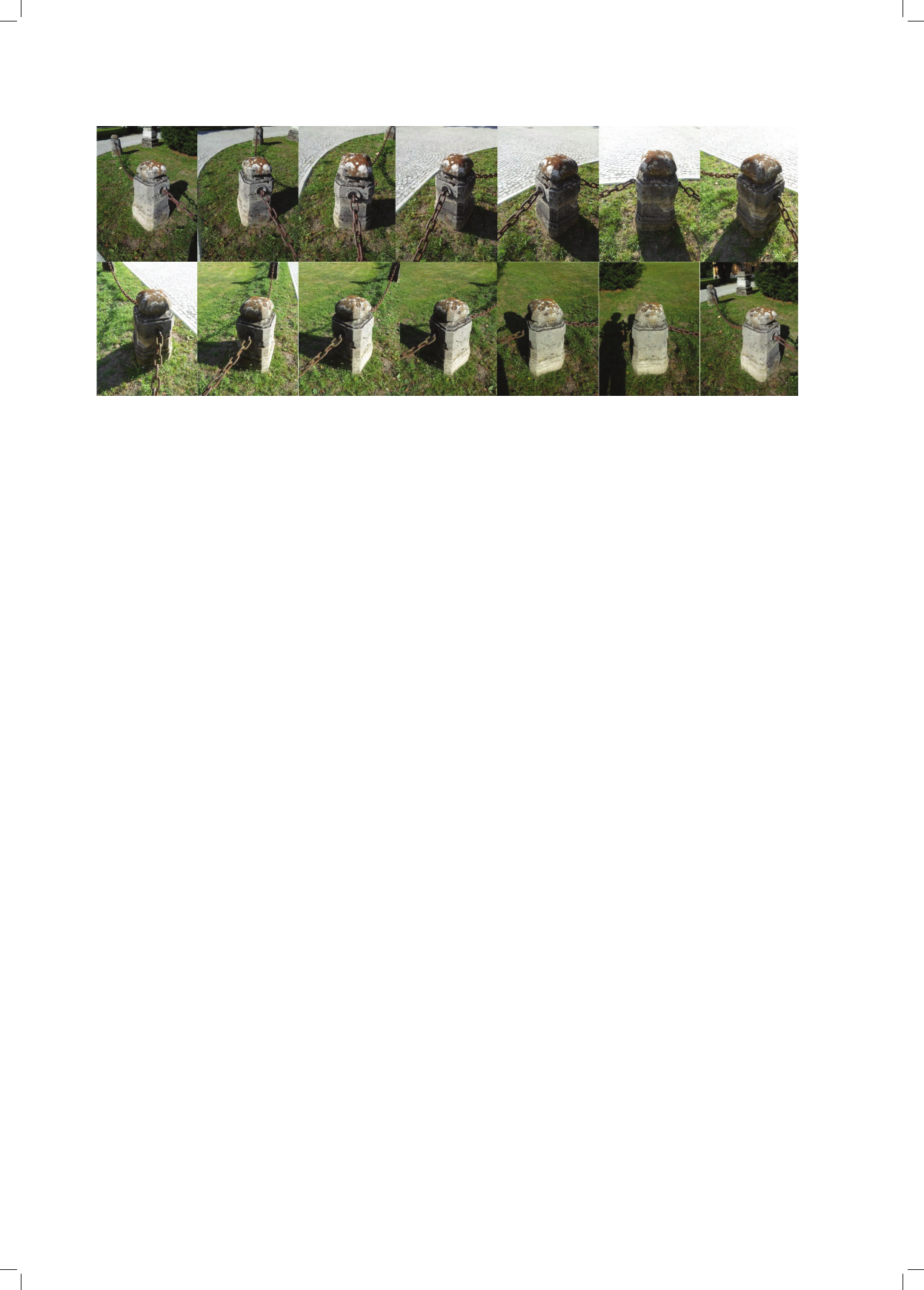

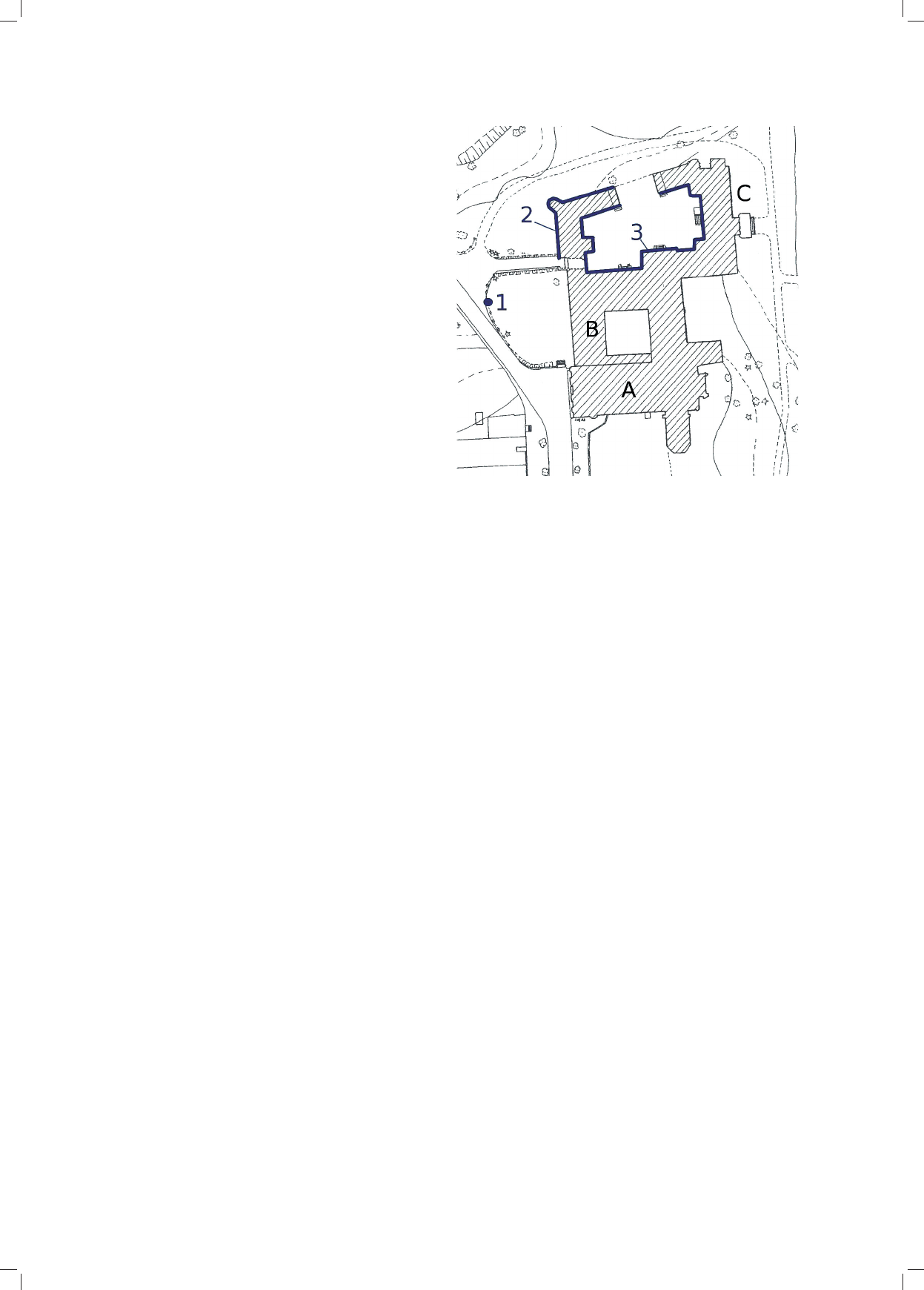

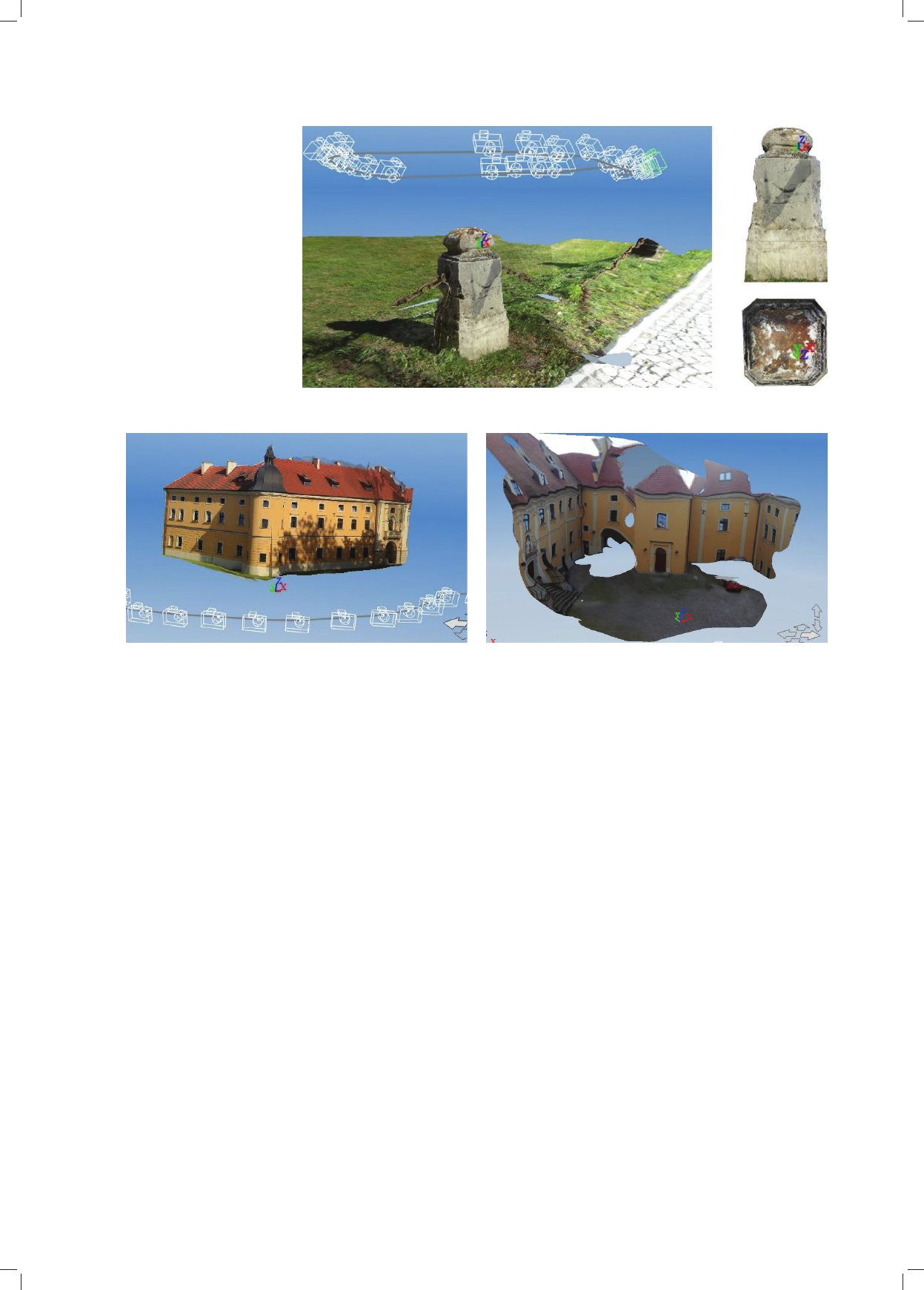

This article is a result of the work of the research program of transformation conservation research in architecture Cistercian abbeys in Silesia using modern digital technology. Gathered as part of trip to the palace of the former abbot and Cistercian monastery in Rudy Raciborskie materials inventory were developed using computer software 123D Catch. The object of the study were elements of the above-mentioned band, including fence post, elevation north-western band abbey and the palace courtyard facades of that palace. The aim of the work is an attempt to find suitable photogrammetric methods, which do not require specialized equipment and check the effectiveness of the chosen one in terms of ability to perform an inventory. The study contains as positive and also negative results. Selected software requires further investigation for the possibility of some use it in photogrammetric surveys.
